Your present position：Home > Product > Glue stiring machine
Glue stiring machineCategory：Glue stiring machine
Hotline:0755-2728-6106
| Application: Glue ratio without packing
| Principle of operation：
1, glue quantity is set to digital input
2, now with the current use, on-demand amount
3, glue set, the density of different glue can be set by the coefficient.
| Parameters:
|
1 |
Proportion with glue |
Fixed proportion between 10: 1~1:1 is allowed |
|
2 |
Mixing method |
Dynamic mixing |
| 3 |
Counter tops |
DIY |
|
4 |
Programming mode |
Digital programming |
|
5 |
Dimensions |
1200*800*1400MM |
|
6 |
The main pump (A pump) |
Gear pump: (Taiwan) |
|
7 |
Attached pump (B pump) |
Gear pump: (Taiwan) |
|
8 |
Tank Capacity |
A Cylinder 40L，B Cylinder 20L（the size can be customized according to needs of customer） |
|
9 |
A plastic flow |
2-10g/s |
|
10 |
A plastic head |
Single |
|
11 |
Input pressure |
0.5-0.7Mpa |
|
12 |
Machine power |
1000W |
|
13 |
Supply voltage |
AC220V±10%,50-60HZ |
| Device Configuration:
|
1 |
Control System |
Xinjie PLC + 7.2 inch Kunlun on-state touch screen |
|
2 |
Software system |
In the lake independent research and development, a domestic counterparts developed a software anti-misuse function, anti-fade automatic shutdown function |
|
3 |
Operate motor |
YAKO Original motor |
|
4 |

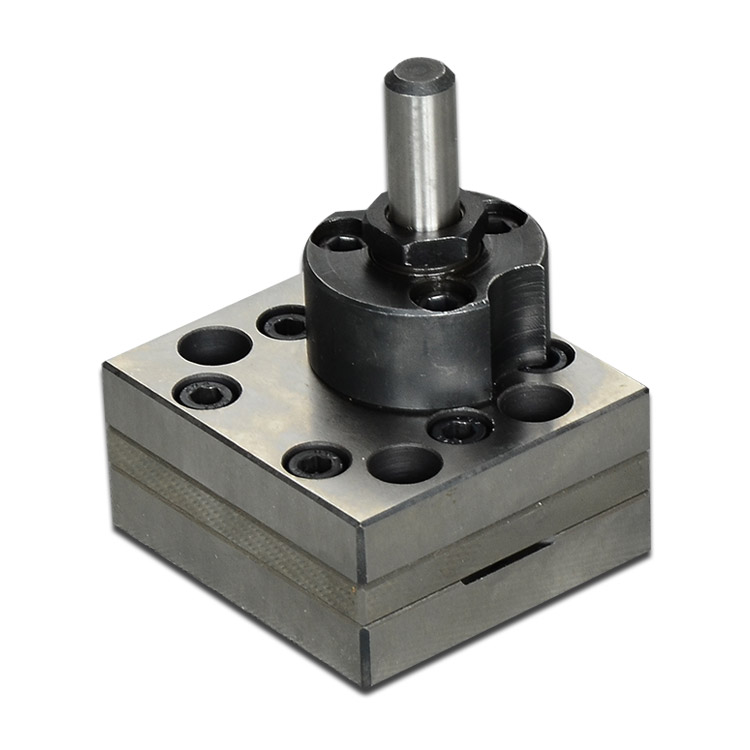

Metering pump body |
China - German joint venture |
|
5 |
Cutting system |
Zhonghu R&D independently |
|
6 |
Mixing device |
Zhonghu R&D independently |
| 7 |
Add Automatic |
Vacuum pump negative pressure feeding |
|
8 |
Negative pressure to bubble |
Vacuum pump negative pressure in addition to bubbles |
| 9 |

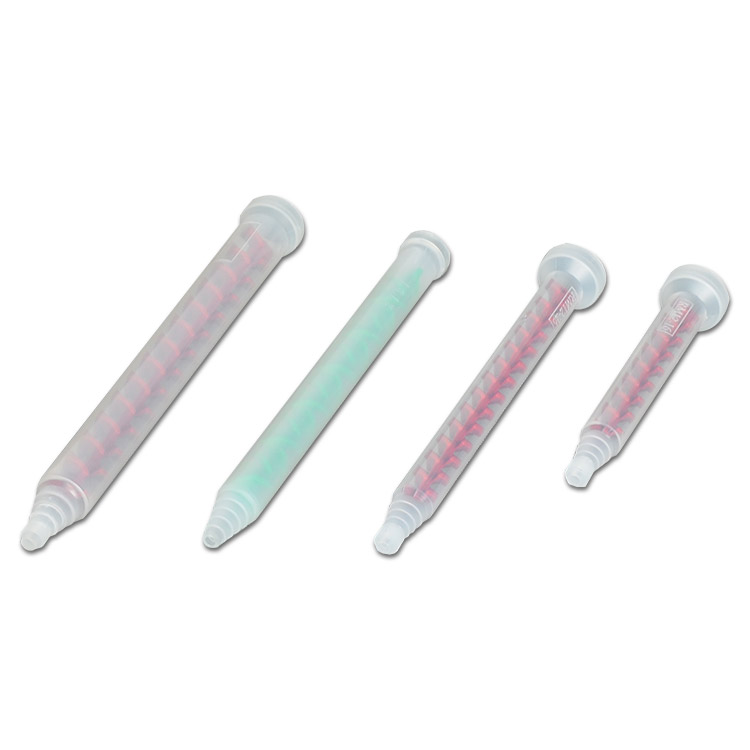

Mixing tube cleaning |
Gas and liquid cleaning |
| 10 |
Level sensing |
Electronic liquid sensor switch |
|
11 |
Frame material |
A3*3mm manufacture |
| Features:
|
1 |
Friendly and concise interface |
Foolproof operation program design, simple operation, practical,
ordinary workers can learn all operating methods in 5 minutes |
|
2 |
億彩网 High-end imported electronic control system |
The main electrical part of the wiring, dust, anti-static, have reached foreign standards |
|
3 |
億彩网 Glue detEction feedback function |
億彩网 The drum part is equipped with low level alarm function, timely remind the glue to add
|
|
4 |
Glue filter four protection |
Filter protection measures to reduce the mechanical pump body failure probability, to prevent impurities in the glue into the glue pipeline |
| 5 |
億彩网 High precision mechanical pump body |
億彩网 Precision adjustment wear type |
| Characteristics of gluing part:
A. Adjust the ratio of adjustment, plastic volume adjustable. Ready to use at any time, on-demand ratio, save glue.
B. Simple and convenient operation, simple editing procedures, no cleaning, easy disassembly, A B directly into the two glue into the two corresponding barrels, when filling with plastic, the workers only need to press the start switch can be.
C. According to the performance of the glue, A rubber bucket with a thermostat device. B rubber bucket sealed to prevent volatile, liquid level sensor device, when the glue below this level automatically alarm, add the corresponding glue
D. Just clean the mixing tube.
